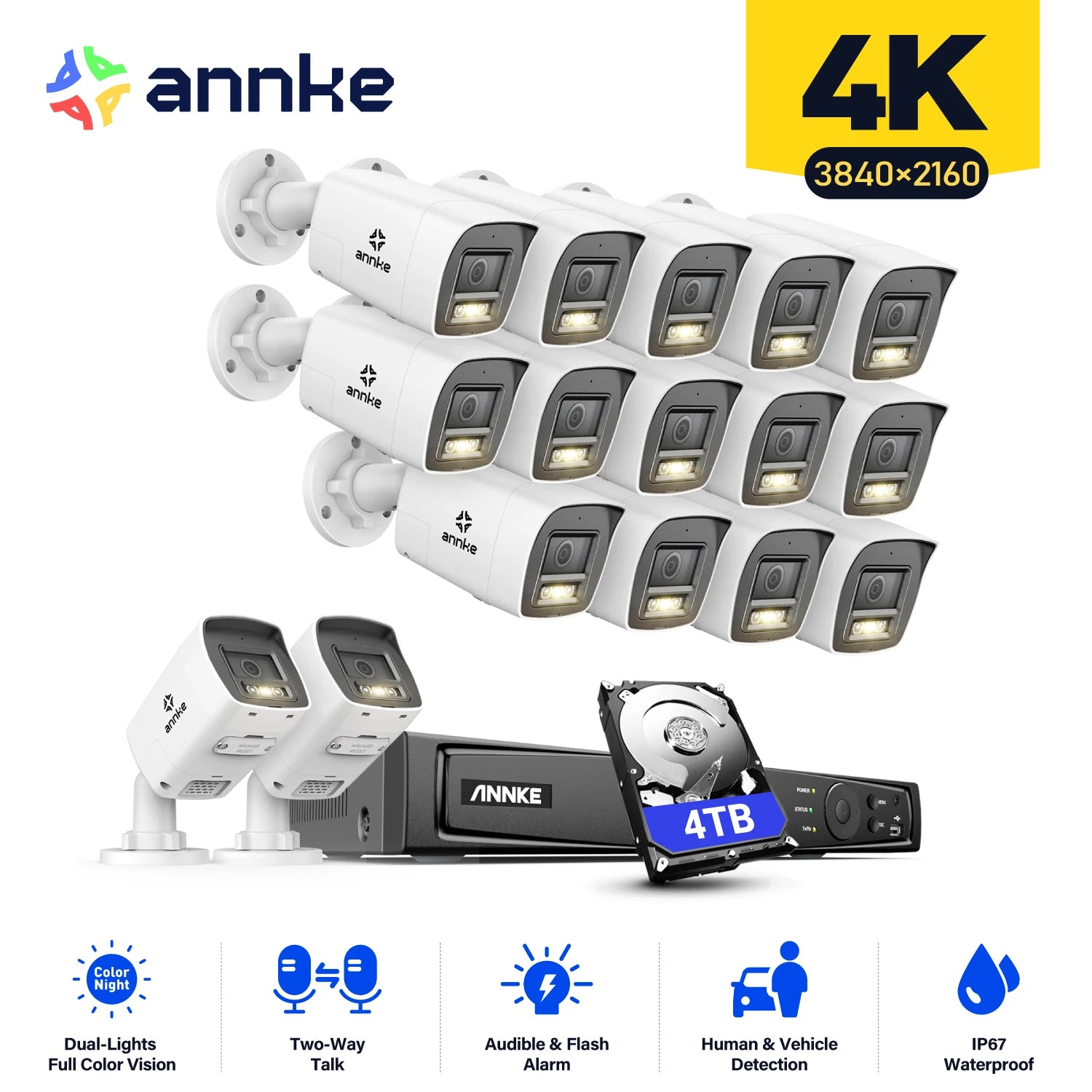

ANNKE 16CH 4K PoE NVR Security System With 8MP Cameras
ANNKE 16CH 4K PoE NVR Security System With 8MP Cameras
Couldn't load pickup availability
Experience crystal-clear security from every angle with a 16-channel 4K PoE NVR system and 8MP cameras that deliver lifelike detail when it matters most.
- You get live view and playback up to 12 MP, with 4K HDMI output for sharp local viewing across your screens.
- Connect up to 16 IP cameras via built-in PoE inputs, simplifying setup and letting you grow security without extra cabling.
- Save bandwidth and storage with advanced H.265+ compression; two SATA bays let you back up recordings and keep longer histories.
- You gain smart monitoring and remote access: human/vehicle detection, the Annke Vision app on iOS/Android, and compatibility with third‑party cameras.
IP Camera | ||

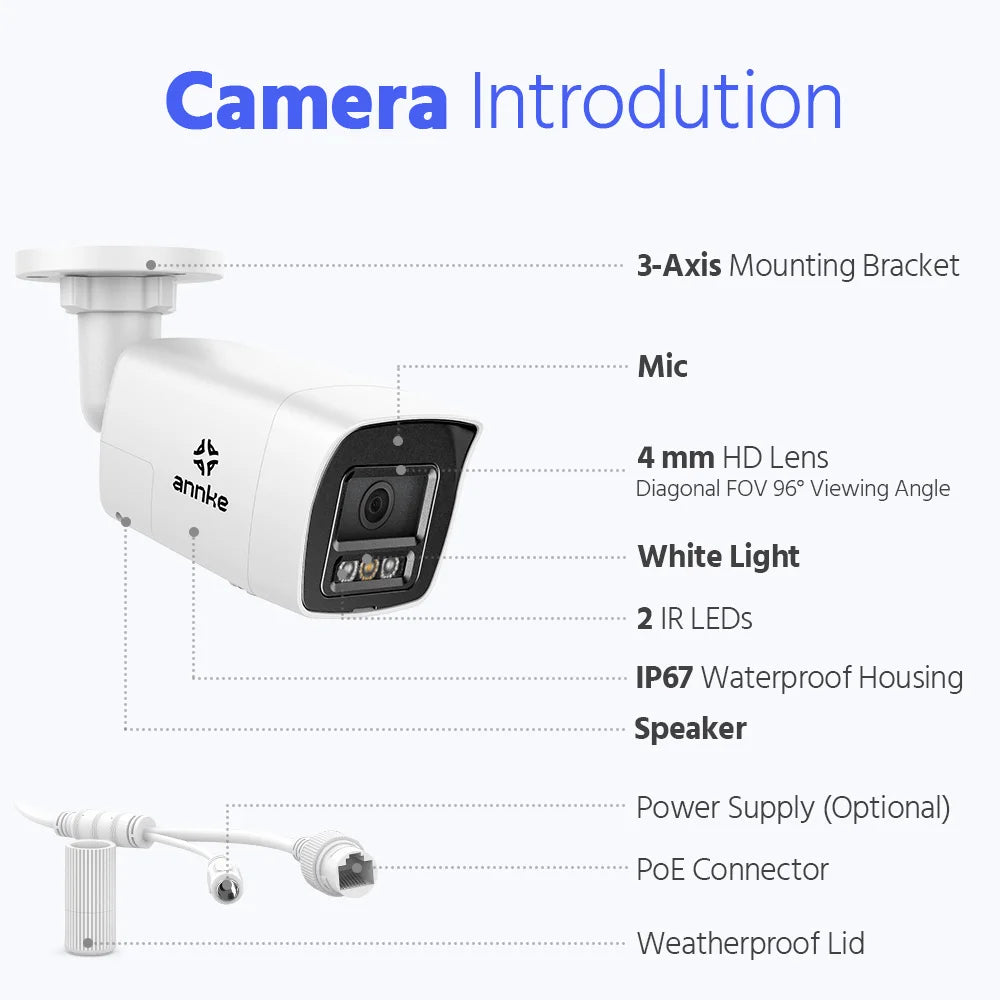

Camera |
Image Sensor |
1/2.4" Progressive Scan CMOS |
Max resolution |
3840*2160(8MP) |
|
Main Stream |
50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
|
Substream |
50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bitrate |
32 Kbps - 16 Mbps |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
|
Audio Input |
Built-in Microphone, record with audio |
|
Audio Output |
Built-in Speaker, max. sound pressure level: 10 cm: 95 dB |
|
Lens |
4 mm |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
Angle of View |
Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° |
|
Supplement Light Type |
Smart Dual-Light, IR, White Light |
|
Supplement Light Range |
Up to 30 m |
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Flashing Light Alarm |
High/Medium/Low Frequency |
|
Audio Alarm |
Warning/Prompt/Custom Audio |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120 dB WDR |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
|
API |
Open Network Video Interface Version (Profile S, Profile T, Profile G) |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Rotate mode, mirror, password protection, remote access |
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
General |
Housing |
Metal & Plastic |
Color |
White |
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Operating Power |
DC 12 V± 25%, max. 8 W; PoE (802.3af), max. 9.5 W |
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
Interface Protection |
IP67 |
|
Dimension (L X W X H) |
179 mm × 67.4 mm × 69.1 mm (7.1" × 2.7" × 2.7") |
|
Weight |
0.6 lb./285 g |
|
NVR | ||
Video & Audio |
Video Compression |
H.264+/H.264/H.265/H.265+ |
IP Video Input |
16CH PoE |
|
Video Output |
HDMI up to 4K, VGA up to 1080p |
|
Audio Input/Output |
1/1 RCA |
|
Incoming/Outgoing Bandwidth |
160/80 M |
|
Max. Recording Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
|
Max. Playback Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
|
Max. Playback Channel |
16CH |
|
Max. Playback Capacity |
1-ch@12 MP(4096 X 3072) (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) |
|
Hard Drive |
HDD |
2 SATA Interface |
HDD Capacity |
Up to 8 TB Capacity for each disk |
|
|
Network Interface |
RJ45 X1 (10/100/1000 M) |
PoE |
16, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at |
|
USB |
2X USB 2.0 |
|
Smart Function |
Deep learning |
16-ch Human and vehicle targets detection(Need IP camera support) |
4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP) | ||
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting |
|
General |
Operating Power |
AC 100-240 V |
Power Consumption |
≤15 W (Without HDD and PoE) |
|
PoE: Max. 25.5W for Single Port | ||
Working Temperature |
14 °F — 131 °F/-10 °C — 55 °C |
|
Dimensions (W X H X D) |
15.2” X 12.4” X 2.0”/385 X 315 X 52 mm |
|
Weight (Without Hard Disk) |
6.6 lbs./3 kg |
|
